Drone Wireless video transmitter digital COFDM modulation 20km
Product Description:
HMMIT02 features for its mini size, light weight that can transmit high quality full 1080P HDMI video and audio even though there are building blocks or high-speed mobile shooting.
This model is widely applied in UAV aviation filming,covert investigation,military, video monitor and real-time wireless video transmission.
Product Sell Point:
1. Low delay time only 40ms.
2. High performance,high capacity power of Li-battery(replaceable);
3. High quality digital video processing&video encoding and decoding&HDMI picture.
4. Excellent anti-interference performance under complex electromagnetic condition.
5. Support NLOS,high-speed mobile transmission;
6. Transmit distance up to 10-20km LOS for UAV.
7. Space diversity reception capability.
8. Small size and light weight easy for carry.

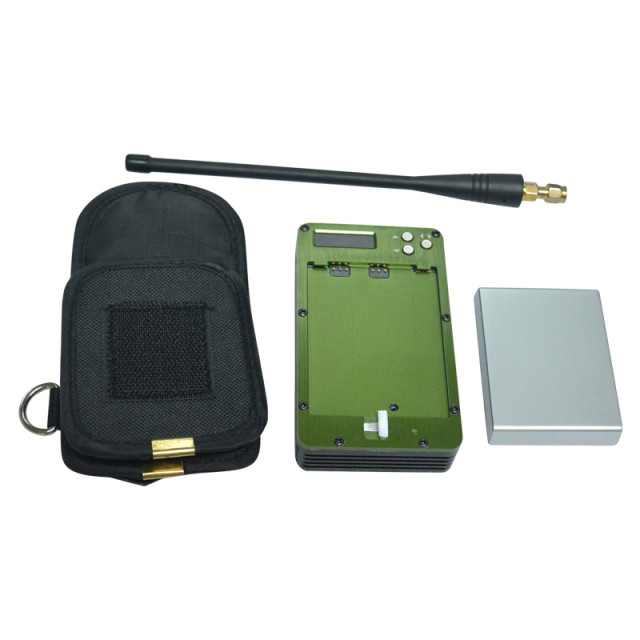

Transmitter Picture:
Transmitter HMMIT02 Specification:
| General Part: |
| Working Frequency: | 300MHz~5.8GHz,(Frequency is adjustable) |
| Output Power: | 0.1~1.2W(adjustable) |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Channel Bandwidth | 1.25/2/4/6/8MHz (Optional) |
| Code Stream | 0.8Mbps~10Mbps |
| End-to-end Delay | 40ms |
| Error Rate: | ≤10-6 |
| Encryption: | AES/ABS(128bit) |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard Interval: | 1/32,1/16,1/8,1/4 |
| Power Supply | DC10V~12V/1.5A |
| Transmit Distance | LOS 15KM for UAV; NLOS:500meter-1KM |
| Audio&Video Part: |
| AV Data Format: | MPEG-2 ,MPEG-4@ ML 4:2:0 |
| Audio Input: | Left and Right channel |
| Video Compression: | Conform to H.264,MPEG-2,MPEG-4 |
| Video Input: | HDMI |
| Resolution: | 1080P(1920*1080)compatible with 720× 576@ transmit rate is 30fps. |
| Two-way Voice: | Two way voice is optional |
| Others: |
| Antenna: | Omnidirectional handheld antenna |
| Battery: | Work 50 minutes(Continuously) |
| Weight: | 350g |
| Size: | L145mm*W105mm*H35mm |
| Working Temperature: | -30~70℃ Relative humidity :90% |
| Reserve Temperature: | -40~80℃; Relative humidity: 90% |
Receiver HMMIR04 Specification:
| General Part: |
| Work frequency: | 300MHz~ 5.8GHz(Adjustable) |
| Frequency spectrum: | The frequency spectrum function is available |
| TALLY System: | TALLY system(Optional) |
| Receive sensitivity: | -106dBm |
| Power supply: | AC 220V |
| Audio&Video Part: |
| Video output: | HDMI,AV |
| Audio output: | Two way |
| Video compression: | H.265,H.264, MPEG-2@ ML 4:2:2 compatible with 4:2:0 |
| Video rate: | 25-30F/S |
| Resolution: | 1080P(1920*1080 )compatible with 720×620 |
| Two way voice: | Two way voice is optional |
| Others: |
| Weight: | 104g |
| Size: | 11.5x8x3cm |
| Interface: | One way HDMI interface(Optional) USB port for Storage |
| Parameter adjustable: | 1.The frequency,bandwidth,guard interval are adjustable |
| Work environment: | Temperature:-30~70℃ Relative humidity:90% |
| Reserve environment: | Temperature:-40~80℃ Relative humidity:90% |
Our Service:
1. Lifelong maintainance
2. 24 hour technical support
3. Strong R&D capability; Customized project is welcomed
4. High quality product with competitive price,short delivery time and responsible after-sale service
